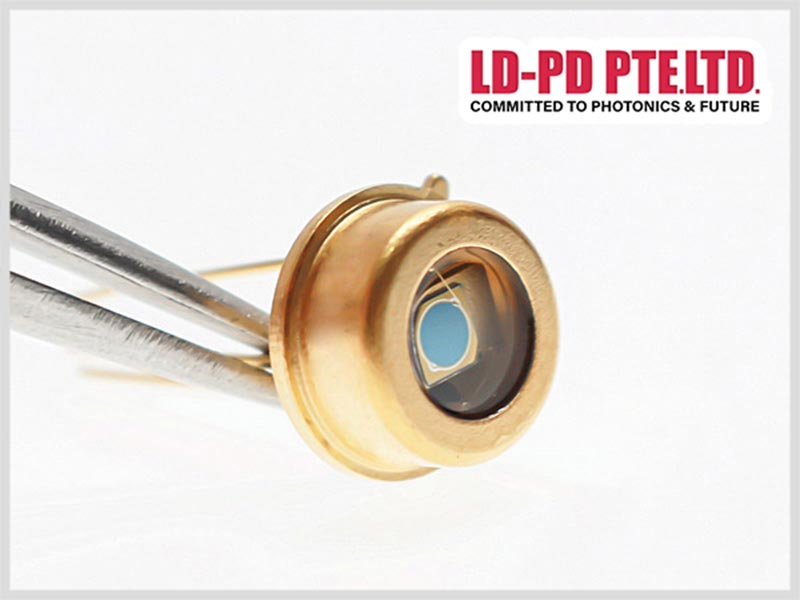

The product is a silicon PIN photodiode, which works under reverse bias condition. The peak wavelength is about 940nm, and the spectrum detection range is from 400 nm to 1100 nm.
Product model
| Ultrafast Si photodetector |
MP-Si-02-TO46 | Active area 0.2mm , Response Spectrum 400-1100nm, Material Si, Response time < 2 ns | Response wavelength: 400-1100nm Material: Si Active area: 200um |
| Optical fiber coupled photodetector |
MP-Si-02-FC-SA | Active area 0.2mm; Response Spectrum 400-1100nm, Material Si, Response time < 2 ns, Single mode fiber coupling, FC/APC | Response wavelength: 400-1100nm Material: Si Active area: 200um |
| Flange SI Photodetector |
MP-Si-02-ADP | Active area 0.2mm; Response Spectrum 400-1100nm, Material Si, Response time < 2 ns, Flange structure | Response wavelength: 400-1100nm Material: Si Active area: 200um |
| 2mm Si photodetector |
MP-Si-2-TO5 | Active area 2mm , Response Spectrum 400-1100nm, Material Si, Response time < 8 ns, TO5 package | Response wavelength: 400-1100nm Material: Si Active area: 2mm |
| Flange Si Photodetector |
MP-Si-4-TO8 | Active area 4mm; Response Spectrum 400-1100nm, Material Si, Response time < 15 ns, TO8 package, Flange structure | Response wavelength: 400-1100nm Material: Si Active area: |
| 8mm large photosensitive surface silicon detector |
MP-Si-8-TO8 | Active area 8mm ; Response Spectrum 400-1100nm, Material Si, Response time < 25 ns, TO8 package | Response wavelength: 400-1100nm Material: Si Active area: 8mm |
| 5mm large photosensitive silicon (Si) photodetector |
MP-Si-5-TO8 | Active area 5mm, Response Spectrum 400-1100nm, Material Si, Response time < 15ns, TO8 package | Response wavelength: 400-1100nm Material: Si Active area: 5mm |
Parameter
Features
● Plane orthographic structure
● Quick response
● Low dark current
● High responsiveness
● High reliability
E/O Characteristics
| Parameter | Symbol Number | Test Condition | Typical Value | Unit |
Photosensitive surface size |
|
| Φ0.2 | Φ0.5 | Φ1 | Φ2 | Φ4 | Φ5 | Φ8 | 0.5X0.5 | 1X1 | 1.3X1.3 | 2X2 | 3X3 | mm |
Optical Parameters | Spectral Response Range | λ |
| 400~1100 |
| nm |
Responsibility | Re | VR=15V λ=900nm | 0.40 | 0.45 | 0.5 | 0.5 | 0.5 | 0.5 | 0.55 | 0.45 | 0.45 | 0.5 | 0.5 | 0.5 | A/W |
Response Time | tr | VR=15V， RL=50Ω | 2 | 5 | 6 | 8 | 15 | 15 | 25 | 3.5 | 5 | 8 | 10 | 15 | nS |
Electrical Parameter | Dark Current | ID | VR=15V | 1 | 2 | 3 | 5 | 12 | 40 | 60 | 3 | 3 | 4 | 6 | 10 | nA |
Breakdown Reverse Voltage | VB | IR=10μA | 100 | 50 | 80 | V |
Electric Capacity | Cj | f=1MHz VR=15V | 0.8 | 1.2 | 2.0 | 6 | 20 | 30 | 70 | 6.0 | 3 | 3 | 10 | 25 | pF |
Operating Voltage | VR |
| 0~15 | V |
Tube Socket Model |
|
| Coaxial type II, 5501, TO46, plug-in, with pigtail | TO-5 | TO-8 | Coaxial type II, 5501, TO46, plug-in, T05 | TO-5 |
|
Saturated optical power 0.3w/cm2 |
* The size and technical index of the photosensitive surface of the product can be determined according to the customers’ requirements; Please refer to the attached table for specific parameters.

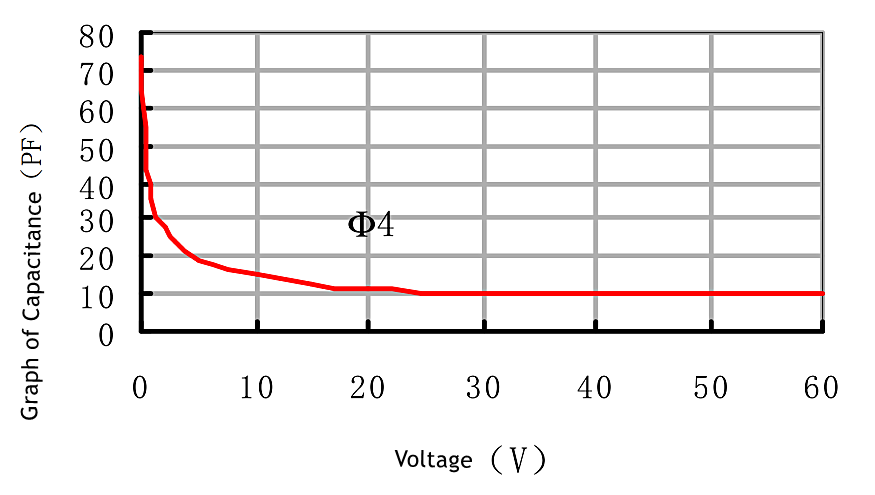

Fig. 1 Graph of Capacitance and Voltage

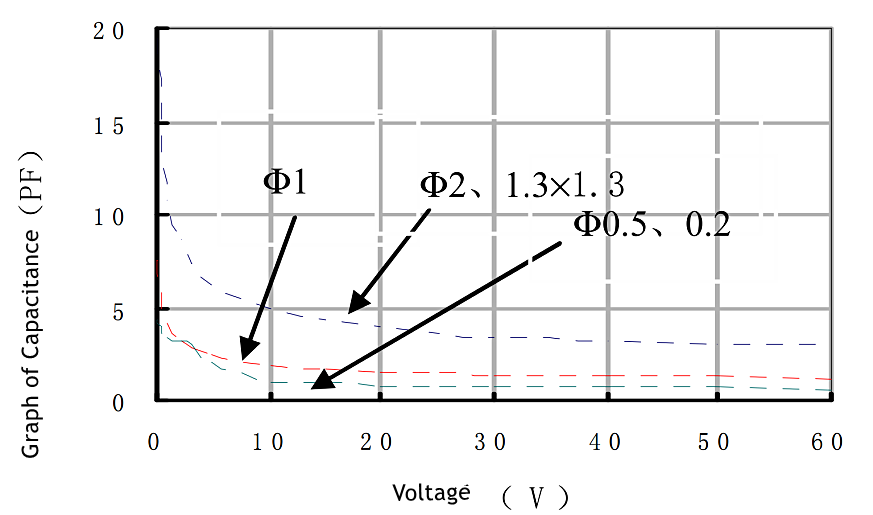

Fig. 2 Graph of Capacitance and Voltage

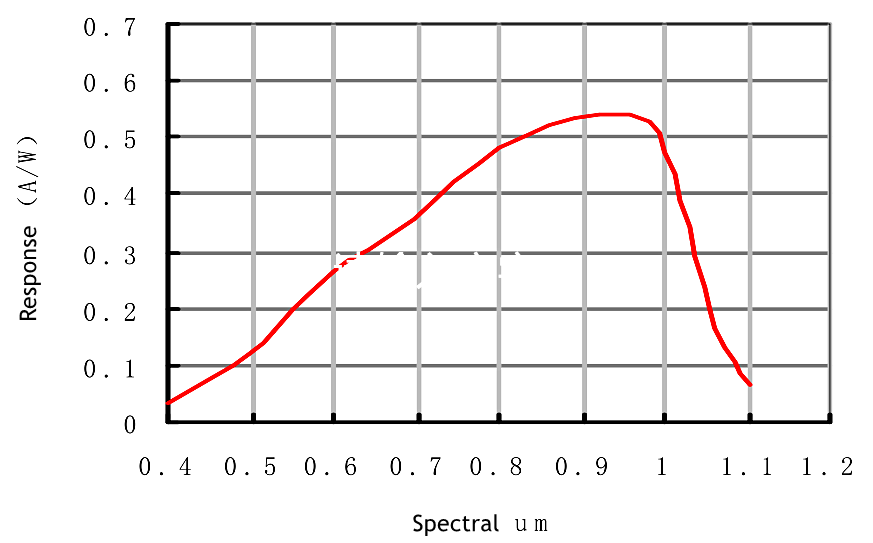

Fig. 3 Spectral Response Curve

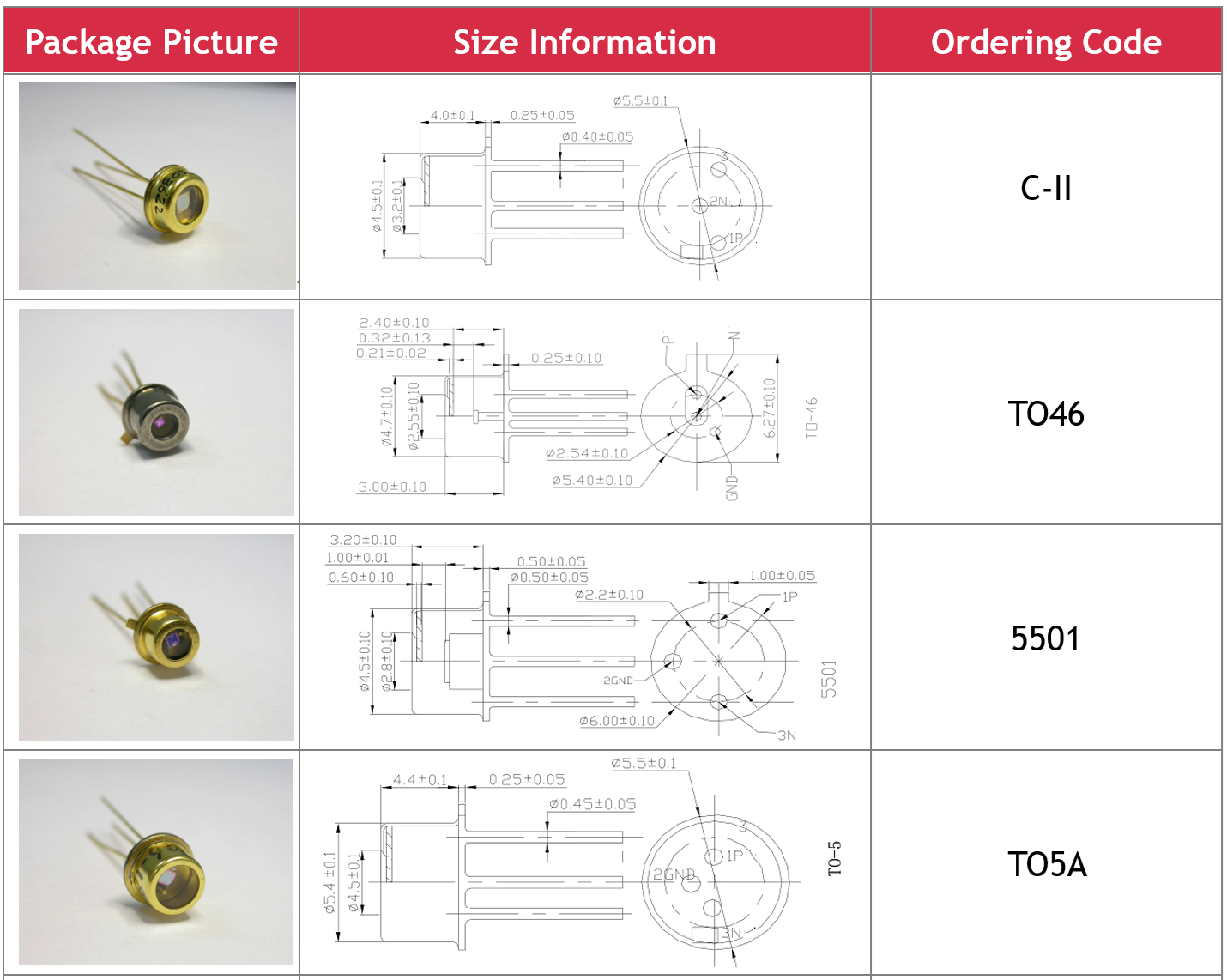

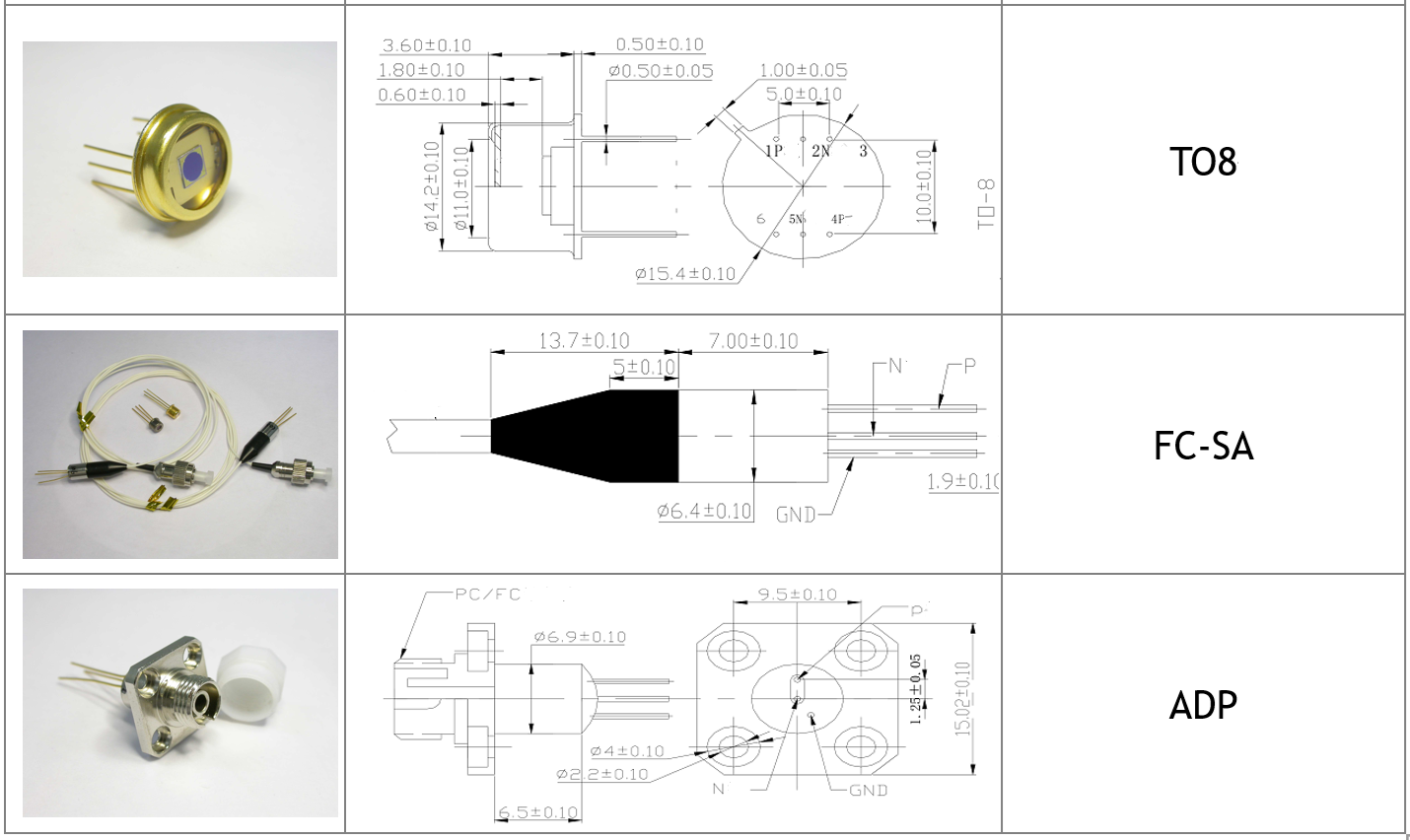

Dimensions and Pin definitions
Caution
● The device works under reverse bias voltage. Pay attention to that the polarity of the device cannot be reversed.
● The bending degree of optical fiber cannot be less than 45 degrees.
● Pay attention to electrostatic protection measures during storage, transportation and use of devices.
Application
● Optical fiber communication, sensing and ranging
● Light detection from visible light to near infrared
● Fast optical pulse detection
● Various industrial control systems
Ordering Info
Company code | Detector Material | Photosensitive surface Size | Package |
MP | -SI | 02-0.2mm | C-II |
|
| 05-0.5mm | TO46 |
|
| 2-2mm | 5501 |
|
| 4-4mm | TO5A |
|
| 5-5mm | TO5B |
|
| 8-8mm | TO8 |
|
| S1-1X1mm | FC-SA |
|
| S2-2X2mm | ADP |
|
| S3-3X3mm |
|
