Our<10 GHz photodetectors contain a PIN photodiode that uses the photovoltaic effect to convert optical power into electrical current. When terminated into a 50 Ω resistor on an oscilloscope, the pulse width of a laser can be measured. When terminated into a 50 Ω resistor on a spectrum analyzer, the frequency response of a laser can be measured. LD-PD's <10 GHz photodetectors have their own internal bias supply consisting of a long life lithium battery. Plugging a coaxial cable into the photodetector's BNC output connector and terminating with 50 Ω on an oscilloscope or spectrum analyzer is all that is required for operation.
Product model
| Ultrafast Photoelectric Detector (400-900nm) (replace ET-2030) |

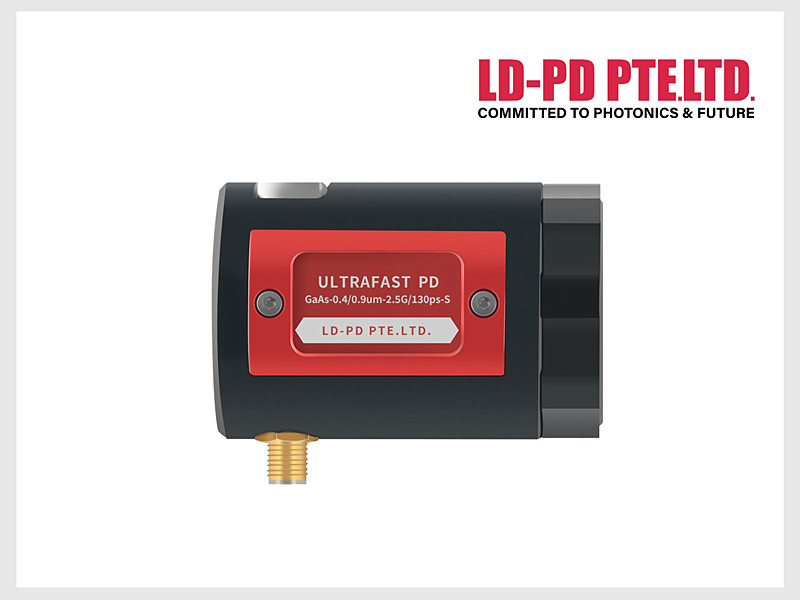

GaAs-0.4/0.9um-2.5G/130ps-S | Sensitivity range 400~900nm, Bandwidth 2.5GHz, Rise Time (RT) 130ps, Sensitivity Dimension Φ70um | Response wavelength: 400-900nm Active area: 70um |
Parameter
Features
● Ultra-high-speed detector, commonly used for visible light measurement;
● Biased detector, extremely low noise, ultra-high-speed response, no gain;
● Suitable for intensity-time waveform measurement of high-speed laser pulses or luminescence events;
● Excellent performance, high cost-effectiveness, and full technical support;
● Provide non-standard customized services.
Key Parameter
Parameters | Details |
Bias voltage | A23 Dry cell batteries ,12V |
Operating impedance | 50Ω |
Active area characteristics | Planar lens/coupling lens/fiber holder FC interface/single mode pigtail FC connector |
Operating temperature/ Storage temperature | 0~40℃ |
Detector net wight | 0.13 kg |
Dimension | Φ 36mm X 53.5mm |
Battery power supply | A23,12VDC,40mAh |
Signal interface | SMA(DC Coupling) |
Support rod interface | M4 x 1 |

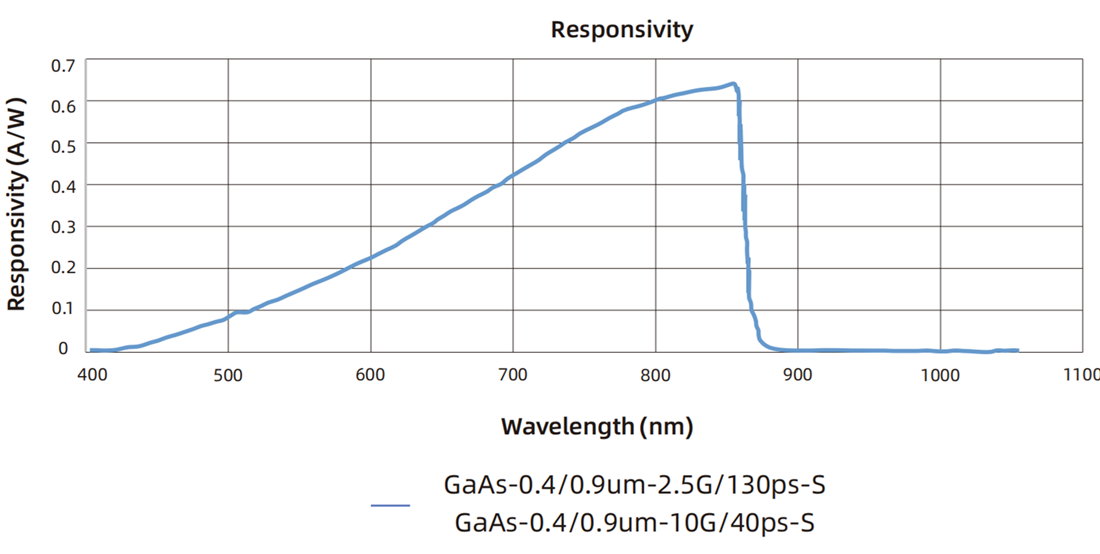

Responsible Curve

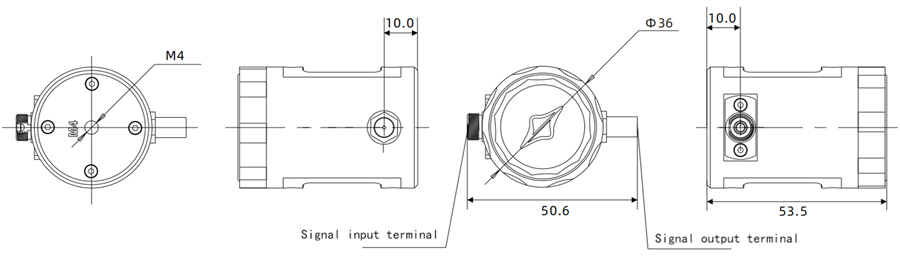

Dimension

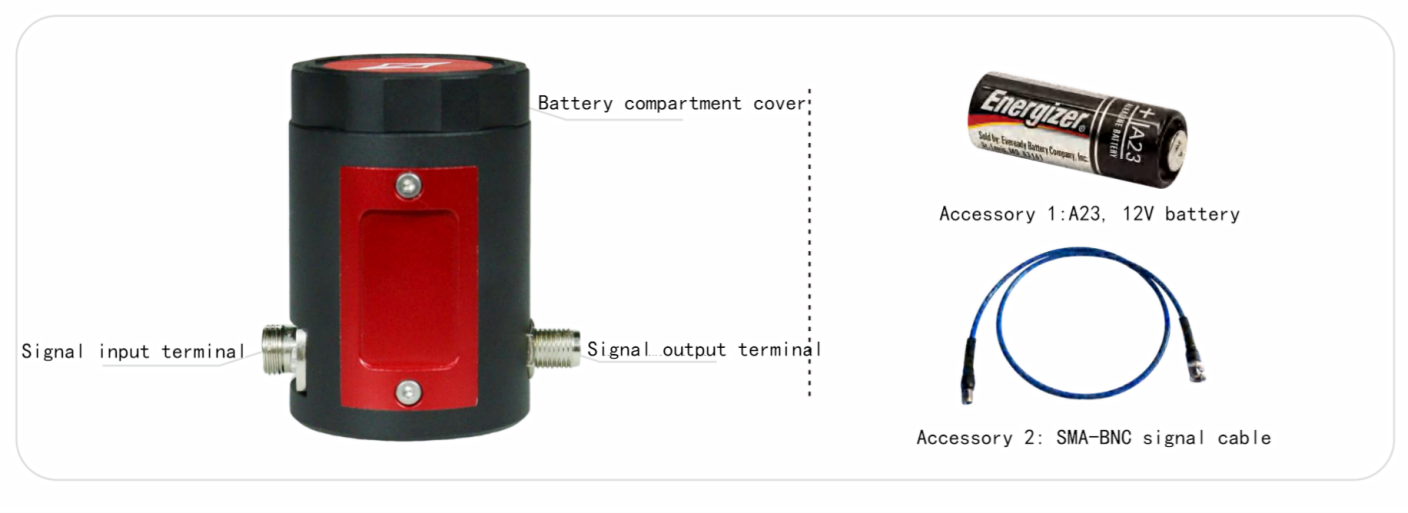

Product Configuration
Application
● Monitor the output of Q-switched lasers
● Monitor the output of mode-locked lasers
Ordering Info
PN# | Sensitivity range | Sensitivity Dimension | Rise Time (RT) | Bandwidth (BW) |
GaAs-0.4/0.9um-2.5G/130ps-S | 400~900nm | Φ70um | 130ps | 2.5GHz |
GaAs-0.4/0.9um-10G/40ps-S | Φ50um | 40ps | 10GHz |
Note: -S flat window; -L coupling lens; -FC fiber holder FC interface; -SMFC single-mode pigtail FC connector.
Our<10 GHz photodetectors contain a PIN photodiode that uses the photovoltaic effect to convert optical power into electrical current. When terminated into a 50 Ω resistor on an oscilloscope, the pulse width of a laser can be measured. When terminated into a 50 Ω resistor on a spectrum analyzer, the frequency response of a laser can be measured. LD-PD's <10 GHz photodetectors have their own internal bias supply consisting of a long life lithium battery. Plugging a coaxial cable into the photodetector's BNC output connector and terminating with 50 Ω on an oscilloscope or spectrum analyzer is all that is required for operation.
Product model
GaAs-0.4/0.9um-2.5G/130ps-SResponse wavelength: 400-900nm
Active area: 70um
Parameter
● Ultra-high-speed detector, commonly used for visible light measurement;
● Biased detector, extremely low noise, ultra-high-speed response, no gain;
● Suitable for intensity-time waveform measurement of high-speed laser pulses or luminescence events;
● Excellent performance, high cost-effectiveness, and full technical support;
● Provide non-standard customized services.
Parameters
Details
Bias voltage
A23 Dry cell batteries ,12V
Operating impedance
50Ω
Active area characteristics
Planar lens/coupling lens/fiber holder FC interface/single mode pigtail FC connector
Operating temperature/ Storage temperature
0~40℃
Detector net wight
0.13 kg
Dimension
Φ 36mm X 53.5mm
Battery power supply
A23,12VDC,40mAh
Signal interface
SMA(DC Coupling)
Support rod interface
M4 x 1
Responsible Curve
Product Configuration
● Monitor the output of Q-switched lasers
● Monitor the output of mode-locked lasers
PN#
Sensitivity range
Sensitivity Dimension
Rise Time (RT)
Bandwidth (BW)
GaAs-0.4/0.9um-2.5G/130ps-S
400~900nm
Φ70um
130ps
2.5GHz
GaAs-0.4/0.9um-10G/40ps-S
Φ50um
40ps
10GHz
Note: -S flat window; -L coupling lens; -FC fiber holder FC interface; -SMFC single-mode pigtail FC connector.
