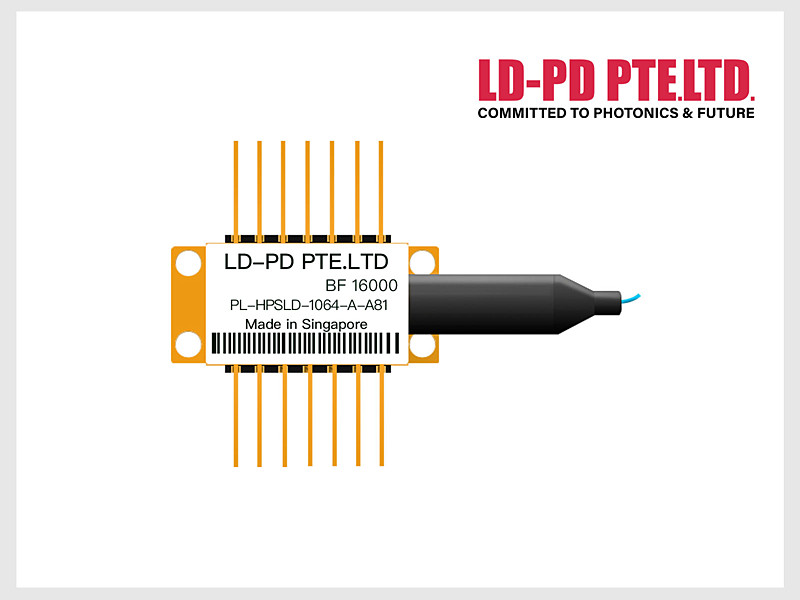

The PL-HPSLD-1064-A-A81-PA 1064nm Superluminescent Diode is a light source for fiber transmission systems, fiber optic gyros, fiber optic sensors,optical coherence tomography, optical measurements. The diode is packaged in 14-pin standard butterfly package with monitor photodiode and thermo-electric cooler (TEC). Module is pigtailed with 0.7-1.0 m of single mode polarization maintaining fiber and connectorized by FC/APC connector.
Product model
| 1064nm SM High Power SLD Laser Diode |
PL-HPSLD-1064-A-A81-SA | central wavelength 1064nm, Output power 30mW; Spectral Width 10-20nm; Internal monitor PD and TEC; HI1060; FC/APC | Central wavelength: 1064nm Output power: 30mW Spectral Width: 10-20 nm Package: 14pin - BF |
| 1064nm PM High Power SLD Laser Diode |
PL-HPSLD-1064-A-A81-PA | central wavelength 1064nm, Output power 30mW; Spectral Width 10-20nm; Internal monitor PD and TEC; PM980; FC/APC | Central wavelength: 1064nm Output power: 30mW Spectral Width: 10-20 nm Package: 14pin - BF |
Parameter
Features
● Optical output: ＞20mW
● FC-APC connector
● Efficient coupling into single mode fiber
● 14-pin butterfly package
● CW or pulsed operation
● Internal monitor PD and TEC
● SM or PM Fiber (ø0.9mm)
Laser Specifications
Electrical/Optical Characteristics(Tsub=25°C, CW bias unless stated otherwise)
Parameter | Symbol | Min | Typ | Max | Unit |
Centre Wavelength | λ |
| 1060 |
| nm |
Spectral Width | Δλ | 15 | 20 | 30 | nm |
Threshold Current | Ith |
| 30 | 40 | mA |
Operating Current | Iop |
| 200 | 300 | mA |
Fiber output Power | Pf | 20 | 30 | 40 | mW |
PD Dark Current (VRD=5V) | Id |
|
| 0.1 | uA |
Ripple | RP |
|
| 1 | dB |
Extinction Ratio | PER | 17 | 20 |
| dB |
Coupled Fiber Type | HI1060/PM980 |
Forward Voltage | Vf |
| 1.8 | 2.5 | V |
Thermistor Resistance | RT | 9.5 | 10 | 10.5 | KΩ |
Thermistor Temp. Coefficient |
|
| -4.4 |
| %/°C |
Connector | FC/APC |
Spectrum
L-I Curve
Ripple Test
Package Size

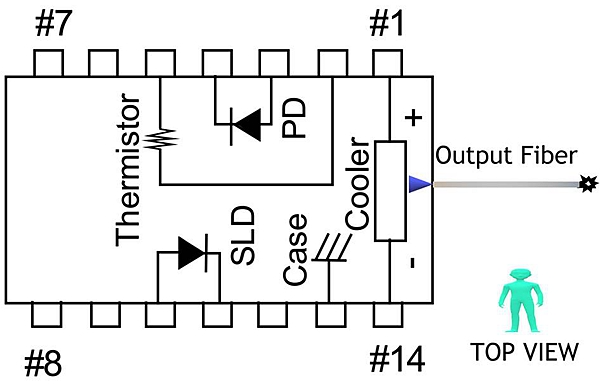

Pin definition
1 | Thermoelectric Cooler (+) | 8 | N/C |
2 | Thermistor | 9 | N/C |
3 | PD Monitor Anode (-) | 10 | Laser Anode (+) |
4 | PD Monitor Cathode (+) | 11 | Laser Cathode (–) |
5 | Thermistor | 12 | N/C |
6 | N/C | 13 | Case Ground |
7 | N/C | 14 | Thermoelectric Cooler (–) |
Absolute Maximum Ratings
Item | Unit | Min | Typ | Max |
Case Temperature | ℃ | -5 | 25 | 70 |
Chip Temperature | ℃ | +10 | 25 | 40 |
Operating Current | mA | 0 | 100 | 300 |
Forward Voltage | V | 0.8 | 1.2 | 1.8 |
TEC Current | A | - | 1.2 | 1.4 |
Reverse Voltage（LD） | V | - | - | 1.8 |
Reverse Voltage(PD) | V | - | - | 10 |
Application
● Fiber transmission systems
● Fiber optic gyros
● Fiber optic sensors
● Optical coherence tomography
● Testing Light source
Ordering Info
PL-HPSLD- □□□□-☆-A8▽- -XX
□□□□：Wavelength
680:680nm
850:850nm
*****
1064：1064nm
☆ : Output Power
A: 30mW
B: 50mW
▽: Spectral Width
1: 10-20nm
2: 20-30nm
XX: Fiber and Connector Type
Product model
PL-HPSLD-1064-A-A81-SACentral wavelength: 1064nm
Output power: 30mW
Spectral Width: 10-20 nm
Package: 14pin - BF
PL-HPSLD-1064-A-A81-PACentral wavelength: 1064nm
Output power: 30mW
Spectral Width: 10-20 nm
Package: 14pin - BF
Parameter
● Optical output: ＞20mW
● FC-APC connector
● Efficient coupling into single mode fiber
● 14-pin butterfly package
● CW or pulsed operation
● Internal monitor PD and TEC
● SM or PM Fiber (ø0.9mm)
Electrical/Optical Characteristics(Tsub=25°C, CW bias unless stated otherwise)
Parameter
Symbol
Min
Typ
Max
Unit
Centre Wavelength
λ
1060
nm
Spectral Width
Δλ
15
20
30
nm
Threshold Current
Ith
30
40
mA
Operating Current
Iop
200
300
mA
Fiber output Power
Pf
20
30
40
mW
PD Dark Current (VRD=5V)
Id
0.1
uA
Ripple
RP
1
dB
Extinction Ratio
PER
17
20
dB
Coupled Fiber Type
HI1060/PM980
Forward Voltage
Vf
1.8
2.5
V
Thermistor Resistance
RT
9.5
10
10.5
KΩ
Thermistor Temp. Coefficient
-4.4
%/°C
Connector
FC/APC

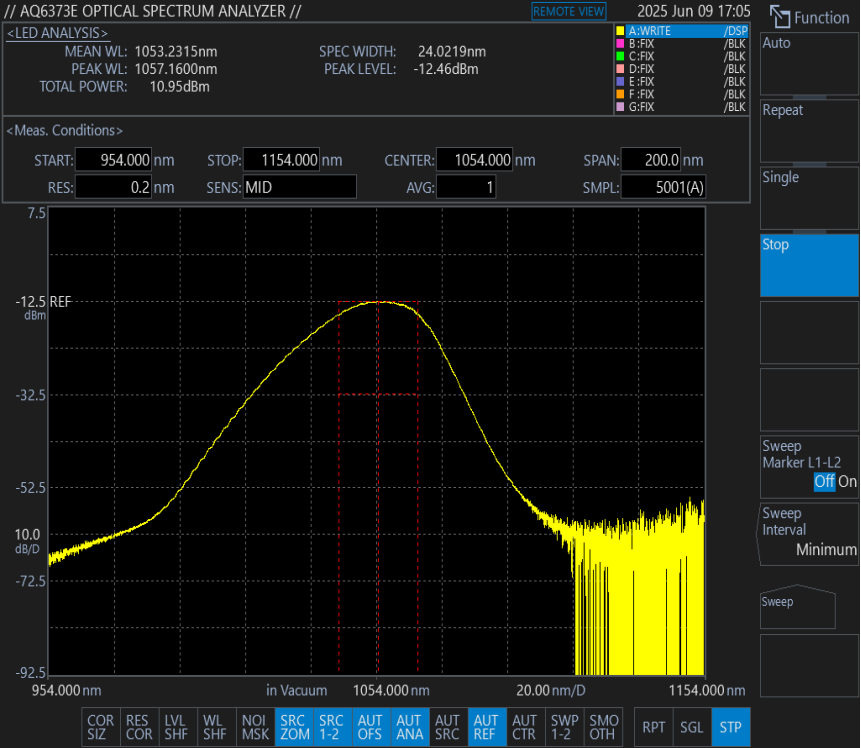

Spectrum

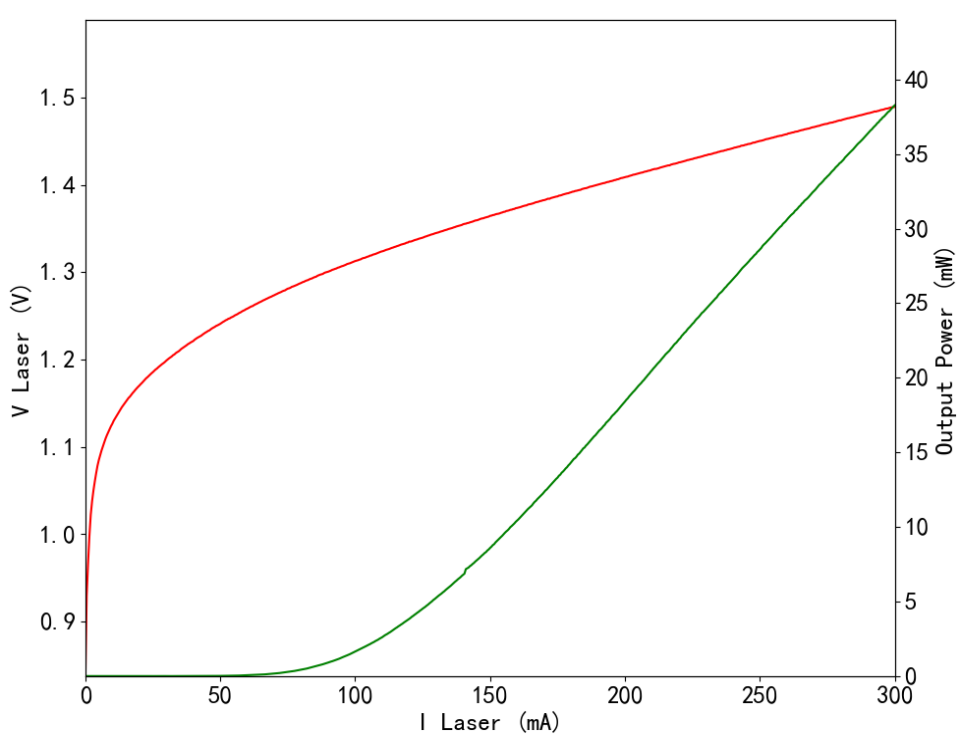

L-I Curve

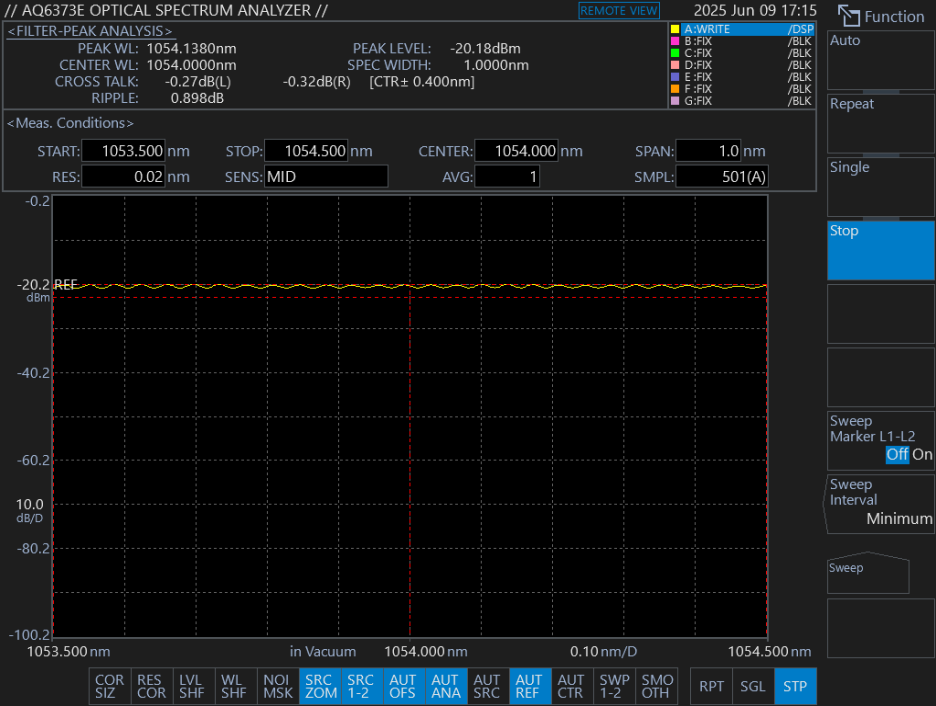

Ripple Test
1
Thermoelectric Cooler (+)
8
N/C
2
Thermistor
9
N/C
3
PD Monitor Anode (-)
10
Laser Anode (+)
4
PD Monitor Cathode (+)
11
Laser Cathode (–)
5
Thermistor
12
N/C
6
N/C
13
Case Ground
7
N/C
14
Thermoelectric Cooler (–)
Absolute Maximum Ratings
Item
Unit
Min
Typ
Max
Case Temperature
℃
-5
25
70
Chip Temperature
℃
+10
25
40
Operating Current
mA
0
100
300
Forward Voltage
V
0.8
1.2
1.8
TEC Current
A
-
1.2
1.4
Reverse Voltage（LD）
V
-
-
1.8
Reverse Voltage(PD)
V
-
-
10
● Fiber transmission systems
● Fiber optic gyros
● Fiber optic sensors
● Optical coherence tomography
● Testing Light source
PL-HPSLD- □□□□-☆-A8▽- -XX
□□□□：Wavelength
680:680nm
850:850nm
*****
1064：1064nm
☆ : Output Power
A: 30mW
B: 50mW
▽: Spectral Width
1: 10-20nm
2: 20-30nm
XX: Fiber and Connector Type
