Superluminescent Diode (SLD)

LP-SLD-1310-8PIN-PM is a type of 1310nm superluminescent laser diode (SLD). It is used as an incoherent light source in various optical measurements. This light source features a wide spectrum and high output power, among other characteristics.

Product model

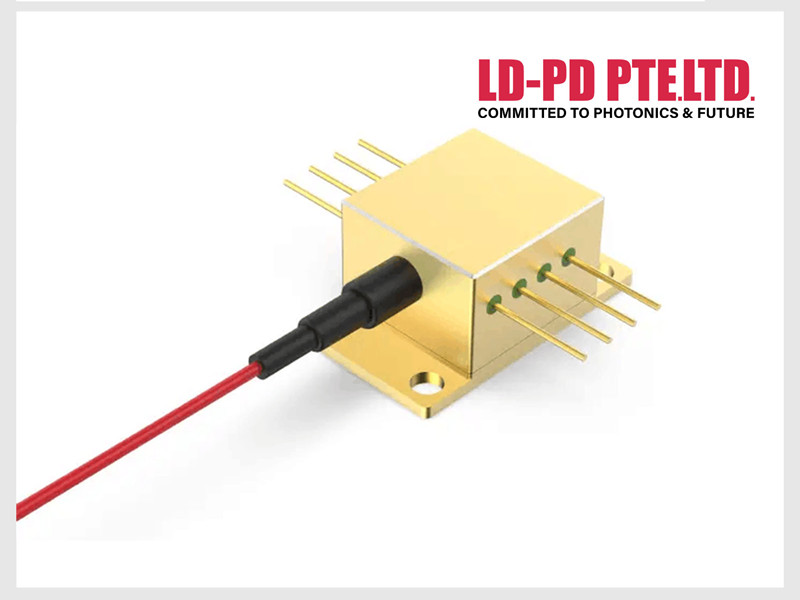

1310nm Super luminescent (SLD) Laser Diode 8-pin cooling

LP-SLD-1310-8PIN-PM

central wavelength 1310nm, Fiber Output Power ≥1.0mW, 3dB Spectral Width ≥35nm, Package Type 8 Pin, Fiber Type PM

Central wavelength: 1310nm

Output power: 1mW

Parameter

Features

● High power > 1.0mW @100mA

● Wide spectrum > 35nm @3dB

● Precise TEC temperature control

● High reliability

● RoHS compliant

Laser Specifications

Optoelectronic Performance Parameters (T=25℃, 100mA)

Parameter	Symbol	Unit	Typical Performance Index
Fiber Output Power	Pf	mW	≥1.0
Average Wavelength	λ	nm	1280-1320
3dB Spectral Width	Δλ	nm	≥35
Ripple	M	dB	≤0.2
Polarization Extinction Ratio	PER	dB	≤1.0
Fiber Type	-	-	SM PM 6/125/250

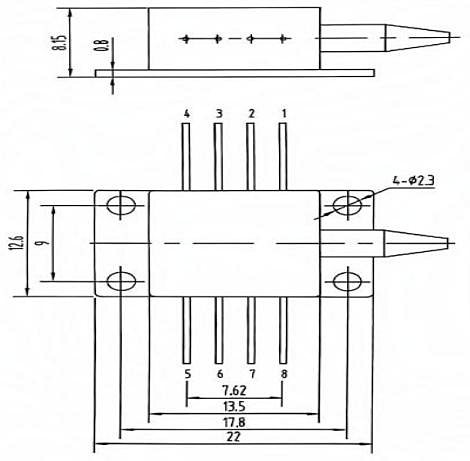

Package Type	-	-	8 Pin
Operating Temperature	TW	°C	-45~70
Storage Temperature	TS	°C	-55~85
Power Variation @ Operating Temperature 2*(Pmax-Pmin)/(Pmax+Pmin)	-	%	<8

Maximum Parameter Range (T=25°C, If=150mA)

Parameter	Symbol	Unit	Typical Performance Index
Reverse Voltage	VR	V	≤3
Power-on Current	IF	mA	100
TEC Current	IC	A	≤1.5
Fiber Bending Radius		mm	≥30
Soldering Temperature	-	°C	≤260(10s)
